    Small Battery Planetary Ball Mill Machine for Lab Material Grinding

    Ask Lasest Price
    Brand Name : ACEY
    Model Number : ACEY-HPM-400ML
    Certification : CE
    Price : USD1339~1648/Set
    Payment Terms : T/T,PayPal,L/C,Western Union,MoneyGram
    Supply Ability : 200 Sets/Month
    Delivery Time : 7~35 Days
    • Product Details
    • Company Profile

    Small Battery Planetary Ball Mill Machine for Lab Material Grinding

    Fast Horizontal Planetary Ball Mill For Coin Cell Assembly



    Product Description:

    Planetary ball mill are extensively applied to in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.


    Features:

    Elegant design, easy to operate
    Ideal for wet or dry grinding application
    Automatic and programmable control with LED display
    Multiple grinding modes to choose
    High Uniformity and excellent repeatability
    Fast rotational speed, high efficiency and fine granularity
    Four samples with different sizes and materials in one experiment
    Programmable interval and pause timesStepless speed regulation, reversing function
    Large range of materials available for grinding tools
    Gear-drive offers an effective solution to problems caused by belt driving
    Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation, no pollution and small wear
    Cooling of the grinding chamber with a built-in fan for long grinding times


    Parameter

    Working Principleimpact and friction force
    Compatible Grinding Jars(50ml~100ml) * 4
    Max Feeding Capacity2/3 capacity of the grinding jar
    Operation Mode2 or 4 grinding jars working simultaneously
    Feeding Granularity*Soil materials < 10mm, others materials < 3mm
    Discharging Granularitydown to 0.1μm
    Sample Typehard, medium-hard, soft, fibrous, brittle, moist
    Rotational Speed of Grinding Jar1100rpm
    Rotational Speed Ratio1 : -2
    Drive Modegear drive and belt drive
    Speed Controlstepless speed regulation
    Electrical Details220VAC, 50Hz, 0.25KW
    Max Continuous Grinding Time72hours (full-load)
    Weight (Net /Gross)30KG /40KG
    Dimension (L*W*H)500mm*300mm*350mm
    Package (L*W*H)570mm*370mm*370mm

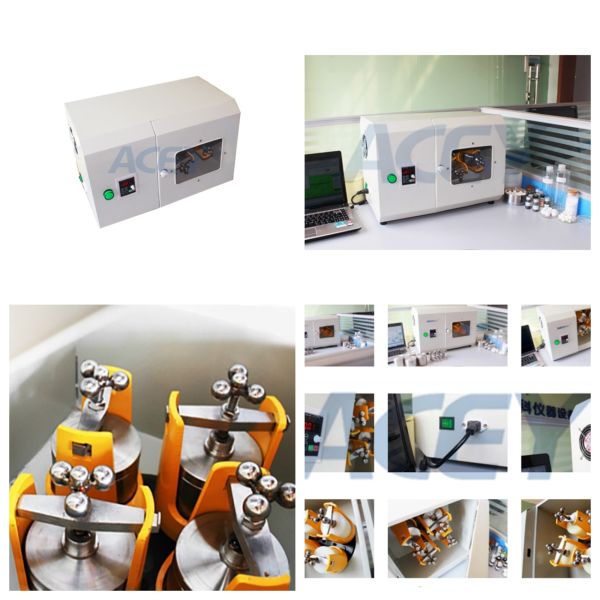

    Product Display

    Small Battery Planetary Ball Mill Machine for Lab Material Grinding
